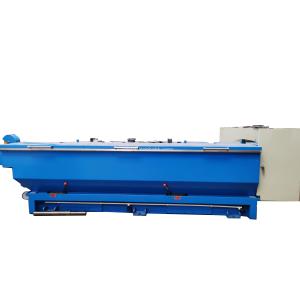

    Electric Cable And Wire Intermediate Drawing Machine With Annealer

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-D-350-9/11/13
    Certification : CE,ISO,SGS
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000 Sets/year
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    Electric Cable And Wire Intermediate Drawing Machine With Annealer

    Electric Cable and Wire Intermediate Drawing Machine with Annealer in Cable Making Machine
    Specification
    item
    value
    Place of Origin
    Guangdong China
    Brand Name
    HOOHA
    Usage
    Drawing
    Model NO.
    HH-D-350-9/11/13
    Bearing
    Japan-NSK
    Electric Element
    Siemens and Omron
    Max. Number of Block
    21
    Control Box
    International Standard
    Wire Size
    8mm Rod
    Max Dies No.
    13
    Origin
    Dongguan
    Wire Finished Diameter
    1.2-3.5
    Power Supply
    380V/50/60Hz
    Product Description
    Copper Wire Intermediate Drawing Machine with Annealer
    The production line is highly integrated by uncoiling, leveling, forming, cutting off, punching, receiving and related process.The whole production line is controlled by PCL program.Operators can select a preset program to run the whole line automatically by using touch screen.The methods of operation include automatic control, manual control, separate operation and emergency stop.
    Machine type
    280/13DH
    300/9DH
    250/13DH
    250/17DH
    260/17D-C
    260/17D
    Max.inlet Dia.(mm)
    3.5
    outlet Dia.(mm)
    0.65-2.8
    1.2-2.8
    0.65-1.6
    0.4-1.6
    0.4-1.5
    0.4-1.2
    Max.Die No
    13
    9
    13
    17
    17
    17
    Max.line speed(m/min)
    2000
    1200
    1800
    1800
    1500
    1200
    body structure
    Ironed cast
    slip ratio of m/c(%)
    20
    18
    20
    20
    18
    18
    fix speed capstan Dia.(mm)
    280
    300
    250
    250
    260
    260
    transmission type
    By high precision grinding gear
    By chain
    main motor power
    55(45)
    37
    take-up motor(kw)
    11(15)
    11
    lubrication type
    Full immersion
    Spray type
    take-up bobbin size(mm)
    500/630(bore is 127mm)or changed by requirement
    Optional equipment
    1.continuous annealing device
    2.coiler
    After service
    1).Delivery dates: 25-30 days
    2).Payment: TT or L/C
    3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
    4).Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
    5).After service phone number online
    The Technical Team
    Certificates and Exhibitions
    Customer Cases
    Customers from Egypt come to visit our factory.
    Customer from Dubai was testing equipment.
    We contracted the Algerian government-level cable project in 2018.
    Dinner with customers in the U.S.
    Packing & Delivery
    1. film packing 2. wooden package 3.enclosed wooden package
