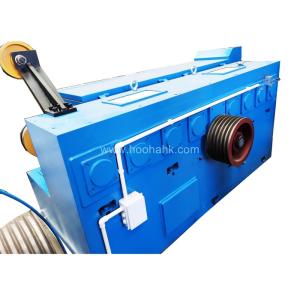

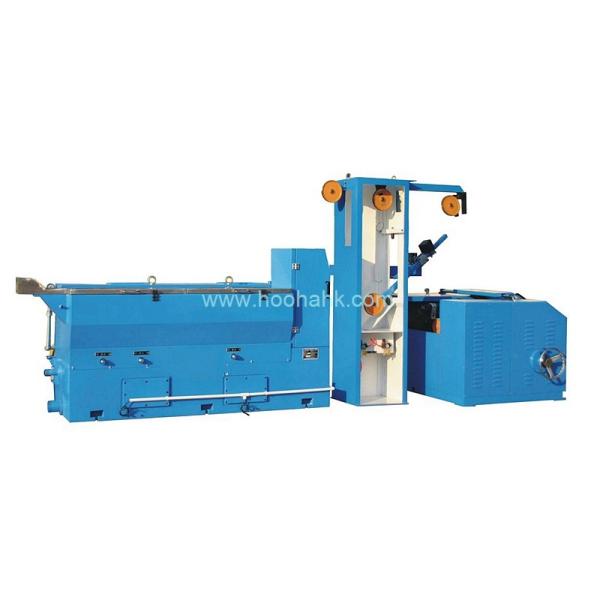

    80 90KW 1800M/Min Intermediate Wire Drawing Machine With Annealer

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-D-250
    Certification : CE/SGS/ISO
    Price : 155,000-162,000 USD / set
    Supply Ability : 1 set / month
    Delivery Time : 35 Working Days
    • Product Details
    • Company Profile

    80 90KW 1800M/Min Intermediate Wire Drawing Machine With Annealer

    Asia and Africa Market Copper Wire Intermediate Drawing Machine with Annealer

    Application

    The production plant is mainly used to draw 2.6-3.0mm copper or aluminum wire, outlet wire to be 0.4-1.2mm. Cooperated with the annealing machine, the finished wire can be used directly for the next process like extrusion. For aluminum wire, the line can be customized to remove annealing part.

    Youtube Video Reference:

    http://www.youtube.com/watch?v=rg227TjsMno


    General Parameters

    Main Components

    1Pay-off stand1set
    2Drawing machine1set
    3Annealing machine1 set
    4Tension unit1set
    5Take-up machine1set
    6Electric control cabinet1set
    7Accessories supplied with the machine

    1set


    Drawing Machine


    1Inlet Dia.(mm)2.6mm
    2Outlet Dia.(mm)1.2~0.4mm
    3Mechanics Speed(m/min)Max 1800
    4Capstan Dia.(mm)250mm
    5No. of Dies(Channel)21
    6Dies Outlet Size(mm)25mm × 8 - 12mm (thickness)
    7Mechanics Elongation (%)By the dies from the 1st to 20th, 18.4% by the 21st die, 15%
    8Main Motor Power(KW)AC45
    9Constant Speed Capstan Motor (KW)AC11
    10Drawing Coolant ModeFull Immersion
    11Dimension(mm)L×W×H5000×3000×3500
    12Machine Net Weight(kg)About 4500

    Annealing machine


    1Wire Size range of Annealing(mm)0.4~1.5
    2Annealing ModeContact mode DC annealing
    3Max. annealing DC current (A)1000
    4Max. annealing DC voltage (V)60
    5Steam consumption by annealing10 - 12kg/h, 0.2 - 0.3MPa
    6Air consumption by annealing20 - 30 m3/h, 0.4 - 0.6MPa
    7Annealing capacityMax. 100 KVA
    8Dimension(mm) L×W×H2000×1200×2000
    9Machine Net Weight(kg)About 3000

    Take-up Machine


    1Take-up controlWeight type tension bar
    2Take-up volume300kg, max
    3Size of Take upΦ630mm
    4Take Up Motor(kw)AC 11
    5Transport Reel Motor(kw)0.75
    6Dimension(mm) L×W×H1500×1200×2000
    7Machine Net Weight(kg)About 1500

    Drawings

    Packaging & Shipping

    Streatchable PE film wrapped, well packed by wooden frame, loaded into container for shipping. Special packaging way as per negotiation.

    Our Advantages

    Our Focus

    1.Quality. Quality is our business life. We accept 100% quality check by customer or third party before shipment.
    2.Customers' comfortable purchasing experience.We pay highly attention on the actual needs of customers, and hope to bring customers high-efficiency products and intimate service, from pre-sales to after-sales, committed to let customers save time and cost, and reduce worries.
    3.Customers' success in business.We not only focus on the sales of products, but also pay attention to the development of our customers. We pursue growing together with customers by providing long-term support and suggestions to help them achieve success.
    4.Supply more environmentally friendly products.
    5.Feed back to the community and help more people.

    FAQ

    Q1:What is your main brands for the electrical and mechanical parts?
    A:Oversea famous brand such as German siemens motor, Japanese nsk bearing and yaskawa inverter etc.
    Q2:What is your difference with other suppliers?
    A:What we could offer to other customer is not only the machine itself, also we could offer: factory design, production process
    design , QC control, talent training, assist machine and raw material offering .

    Q3:What's the payment terms?
    A:T/T,30% deposit and 70% balance before delivery, can be negotiable also.

    Q4:How long the guarantee ?
    A: One year and charge for repair for the whole life.

    Q5: Do you have a video to show the machine running ?
    A. Yes , we have,our youtube channel : tiezhong chi.
